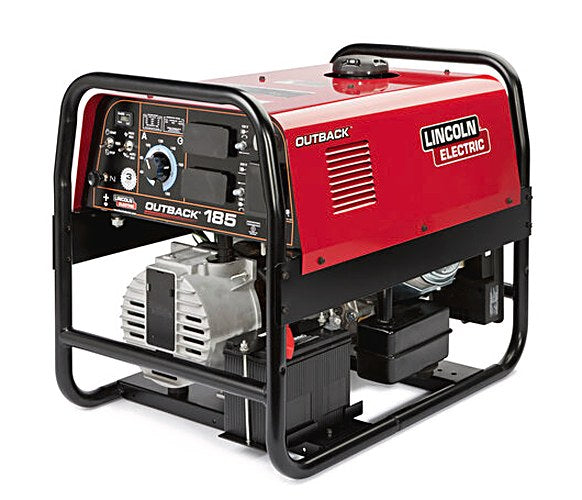

OUTBACK 185 ENGINE DRIVE WELDER (KOHLER)

The Lincoln Electric Outback 185 is an engine-driven welder/generator built for welding where shop power is not available. It combines DC stick (SMAW) welding output with AC generator power in one portable unit, for service trucks, fence contractors, maintenance crews, farmers and ranchers. It welds with stick electrodes up to 5/32 in. (4 mm), and the generator output can also run grinders, work lights and pumps on site, or power equipment such as a POWER MIG 140C or 180C wire welder and a Tomahawk 375 Air plasma cutter.

KEY FEATURES

• Low-Lift Grab Bars - More leverage for lifting the unit on and off truck beds, with extra protection against product damage.
• All Engine Controls on the Front Panel - Easy access for starting, especially when mounted on a truck bed; includes the electric start switch and engine choke control.
• Rugged Tube Frame - 1-1/4 in. (32 mm) diameter frame for all-around sturdy protection.
• 6.8 Gallon Fuel Tank - Less frequent refueling and extended run times, with a large fuel fill opening.
• AC Generator Power - 5,700 watts peak (5,200 watts continuous) for tools, lights, pumps, motor starting and emergency power.

Technical specifications

• Type: Engine-driven welder/generator
• Processes: Stick (SMAW), DC output
• Output range: 50-185 A DC
• Rated output: 130 A DC / 25 V / 60% duty cycle; 150 A DC / 25 V / 20% duty cycle
• Generator output: 5,700 W peak AC / 5,200 W continuous AC
• Engine: Kohler CH440, 14 HP @ 3,600 RPM, 1 cylinder, gasoline, electric start
• Fuel tank: 6.8 gal (25.7 L)
• Electrode size: up to 5/32 in. (4 mm) stick electrode
• Dimensions (H x W x D): 25.6 x 21.8 x 31.5 in (651 x 553 x 800 mm)
• Net weight: 295 lb (133.8 kg)
